Description

Thickness of steel substrate mm 0.39

Thickness of Steel Total Coating mm 0.43 - 0.45

Tile Total Thickness mm ± 2.0

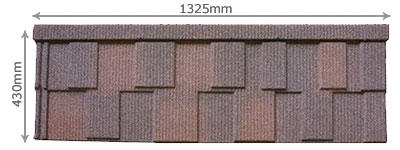

Tile Dimension mm 1325 x 430

Cover length mm 1250

Cover width/Batten Spacing mm 368

Weight of tile kg ±3.0

Weight/area kg/m2 ±6.60

Coverage of tile m2 0.46

Tiles per m2 tiles/m2 ±2.20

Minimum truss pitch Degree 15°
